Super Low Power Return Path Optical Receiver TRR7800L

TRR7800L low power return path receiver is designed according to the standard of GY/T 194-2003 "optical node technology requirements and measurement methods". TRR7800L ...

Current position:HOME > HFC

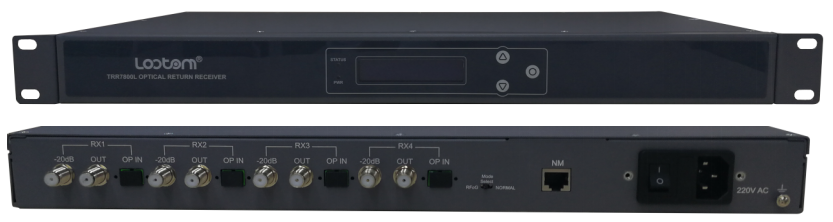

Super Low Power Return Path Optical Receiver TRR7800L


Overview        TRR7800L low power return path receiver is designed according to the standard of GY/T 194-2003 "optical node technology requirements and measurement methods". TRR7800L low power return path receiver is the preferred product in bi-directional optical transmission system networking.
       TRR7800L low power receiver contains 4 high performance optical detector to receive 4 optical signals and then convert into RF signal respectively, then RF amplify, to achieve four independent RF output. The output can be independently turned off. It has high isolation, excellent performance, flexible configuration, AGC control characteristics. Its built-in microprocessor monitors the key working state and parameters of the equipment in real time and remotely monitors and controls through network management. Features         The use of imported high-quality optical receiving devices for photoelectric conversion.
        Using high-performance dynamic noise isolation switch (DNIS switch optional).
        5~200MHz RF bandwidth, to meet the requirements of different CATV system.
        Using high-quality low-power reverse amplification module to improve the reliability of the machine.
        RFoG and Normal working mode optional.
        high-quality switching power supply, to adapt to a wide range of voltage with high reliability.
        perfect safety protection circuit (over-voltage, lightning protection).
        perfect LCD display control and RS232 status monitoring port, can be easily controlled by computer. Technical Specifications

No.

Item

Unit

Performance

Remarks

Optical parameters

1

Optical wavelength

nm

12001600

2

Optical power input range

dBm

-250

3

Optical reflection loss

dB

45.0

4

AGC

dBm

100

5

Input optical ports

2/4

RF parameters

1

RF band

MHz

5 200

Or 565 optional

2

RF output signal level

dBuv

84

The input optical power is -22dBm

3

flatness

dB

±0.75

4

Output reflection loss

dB

16

5

Output test point

dB

-20±1

6

RF output adjust range

dB

0-20

Normal mode

dB

0-40

RFoG mode

7

Channel isolation

dB

565MHz60

65200MHz40

8

NPR

dB

15(NPR30)

General parameters

1

Dimension

mm

440×210×44

W × H × L

2

Power Supply

AC50Hz220V30VA

3

Working temperature

5~+55

4

Storage temperature

25~+65
